FCA8CL

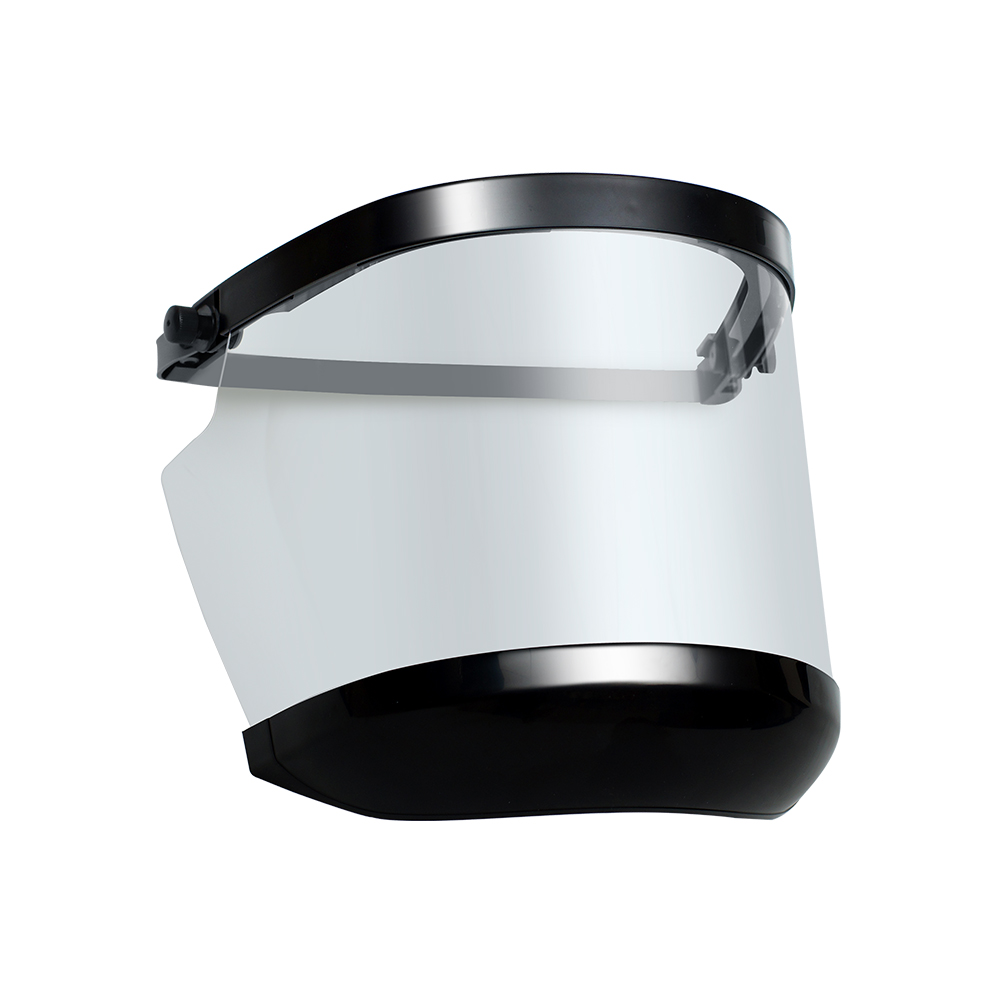

Product Name:FCA8CL Arc Flash Face Shield Visor
Standards: EN 166, EN 170, GS-ET-29, ANSI Z87.1, CSA Z94.3
Thickness: 1.5 mm
Size : 8″ x 19″ (20 cm x 48 cm)
Material: Polycarbonate
Color: Clear
Scale number for filters : 2C-1.2

Description



  • Arc flash protection (European standard)
    Certified by EN166 and GS-ET-29 (Supplementary requirements for the testing and certification of face shields for electrical works).
  • Best optical quality
    To provide users with the best vision possible and help them better focus on their task, Blue Eagle faceshields have passed the highest levels of optical tests (Class 1), including spherical refractive power, astigmatic refractive power, prismatic refractive power, and light diffusion.
  • Protective films
    Inner side of the visors are furnished with protective films to ensure protection against damage or scratches during transportation. These films can be easily removed before use.
  • Impact resistance
    Includes frontal and lateral impact resistance.
  • High-speed particle impact resistance at extremes of temperatures, 190 m/s
    The faceshield is made using extrusion-grade polycarbonate (PC) with the highest specifications for mechanical strength, allowing it to withstand the impact of a 6 mm steel bead traveling at a speed of 190 m/s at extremes of temperatures.
  • Superb UV protection
    We used advanced technologies to provide the user with superb protection against UV while maintaining enhanced color recognition.
  • Protection against splashes and liquids
    Large visors provide broad field of vision and protection against splashes and liquids.
  • Resistance to ignition
    An iron rod measuring 6 mm in diameter and 300 mm in length was heated at one end to a temperature of 650℃. The heated end was pressed against the sample surface using its own weight for 5 seconds. The faceshield did not catch fire nor glow red.
  • Chin protection
    This series of safety visor can be furnished with a chinguard to protect the chin.

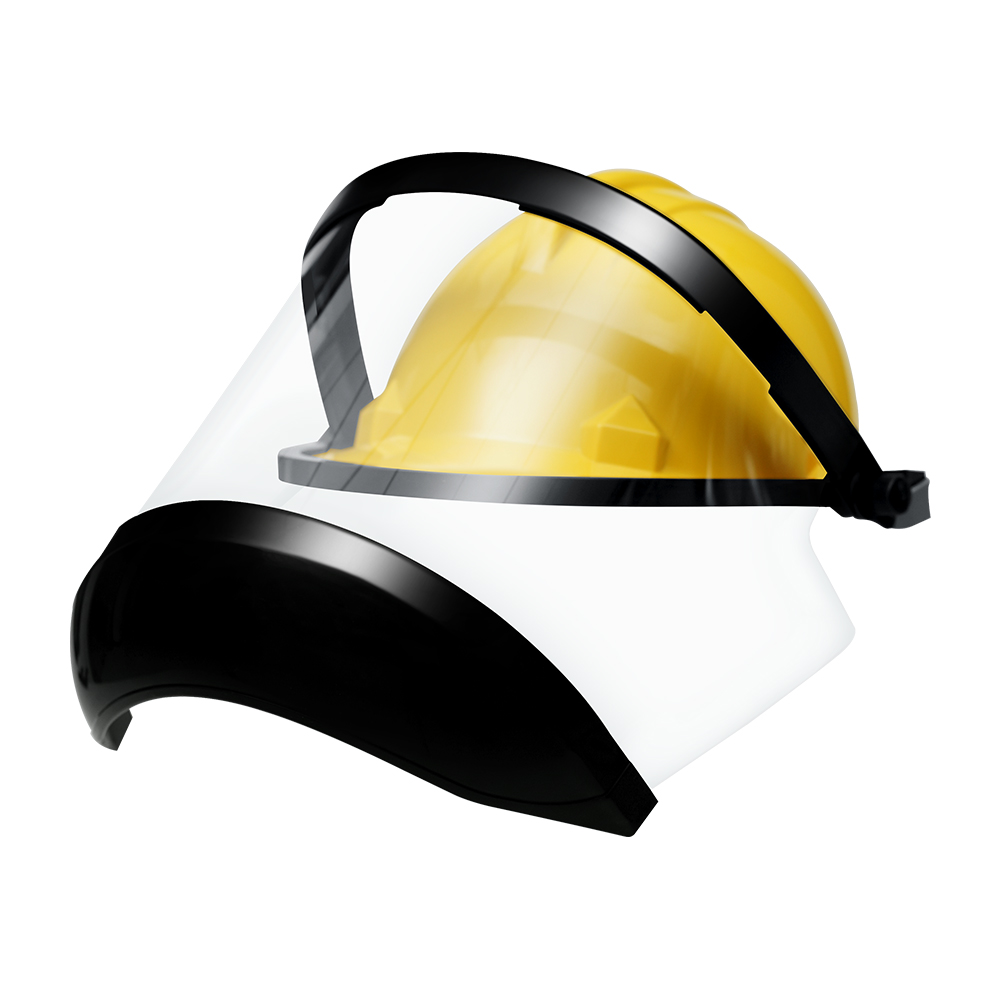

  • Fits regular safety helmets
    The visor bracket can be combined with most safety helmets and used with various types of safety visors.
  • Made in Taiwan

Additional information

Item No.

FCA8CL

Product Name

Arc Flash Faceshield

Standards

EN 166
EN 170
GS-ET-29
ANSI Z87.1
CSA Z94.3

Thickness

1.5 mm

Size

8" x 19"
(20 cm x 48 cm)

Material

Polycarbonate

Color

Clear

Scale number for filters

2C-1.2

Packaging

35 pcs / carton
